• Panir LV Capacitors are made in two Cylindrical and Cubic Types.

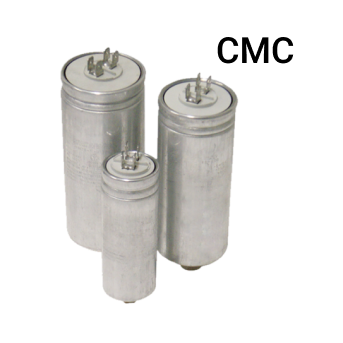

  • Cylindrical Capacitors:

  Panier Cylindrical Capacitors are Designed and Manufactured based on the latest World Technology and in accordance with the International Standard IEC 60831 in two types, Single-phase (CMC) and Three-phase (CTC).

  These Capacitors are produced from 0.83 to 28 KVAR capacity and at nominal voltage levels of 230 V up to 690 V.

  Panir Capacitors have Tested in German VDE laboratory also they have tech certificate from above Lab.

Among the advantages of these Capacitors, the following items can be mentioned:

• 1- Possessing the self-healing property that increases the useful life of these Capacitors.
• 2- Patterned Metallized Film is used in the structure of these Capacitors for better Resistance against Inrush Currents.
• 3- Panir Capacitors are equipped with a Mechanical Overpressure Fuse to protect against anyinternal Gas Pressure increasing.
• 4- These Capacitors have the ability to Withstand Inrush Currents 3 times more than the Standard Inrush Current values.
• 5- In Single-Phase Capacitors, Oil Insulation is used for higher temperature exchange, and in three-phase type, Resin Insulation is used to create the required Insulation properties.

Note: Design and Manufacturing Capacitors with a specific capacity according to the customer’s order will be available.

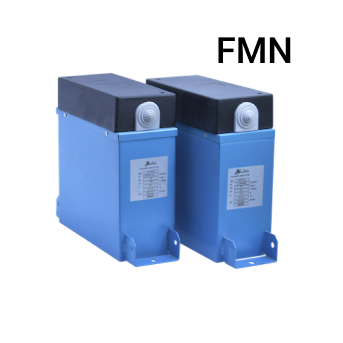

• Three Phases Cubic Capacitors:

This Type of Panir Capacitors are made according to International Standard IEC 60831 and in two PCD FMN types.

The Capacity of them is from 5 up to 100 KVAR in Nominal Voltage 230 up to 690V.

Among the advantages of these Capacitors, the following items can be mentioned:

• • 1- Possessing the self-healing property that increases the useful life of these Capacitors.
  • 2- Patterned Metallized Film is used in the structure of these Capacitors for better Resistance against Inrush Currents.
  • 3- Equipped with a Mechanical Overpressure Fuse to protect against any Overpressure for each of their Internal Elements.
  • 4- Having the ability to repair Cubic Capacitors by replacing their Internal Elements
  • 5- Suitable for Independent Compensation (for motor and large loads), as well as installation in a Traditional Panels.
